Elevator Cables

High-flex travelling cables engineered for continuous vertical movement. EN 50214 tested for 30,000+ flex cycles.

Quality

Tested to EN 50214

Every flat elevator cable we make goes through the EN 50214 reverse bend flex test in our own lab. The cable is weighted at 10 times the weight of a one-metre sample and run back and forth over pulleys, with current through every conductor: if one breaks, the test stops. The standard asks for 30,000 cycles, and all our flat cables go beyond it.

30,000+flex cycles passed
Learn About Testing See the lab in our factory tour

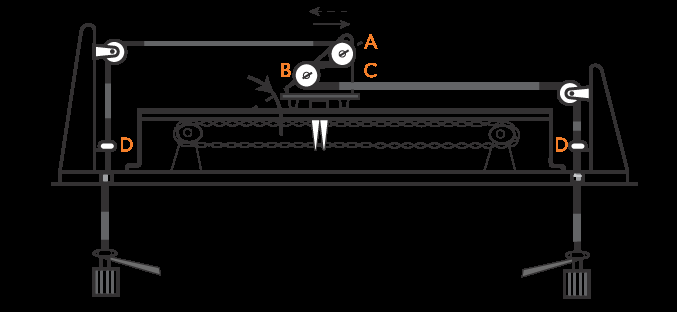

Diagram of the YBS reverse bend flex test rig: the weighted cable runs over pulleys on a moving carriage
Our reverse bend test rig

Combined Travelling Cables (0.75 SQMM)

Multi-core travelling cables with integrated serial communication pairs for modern elevator systems.

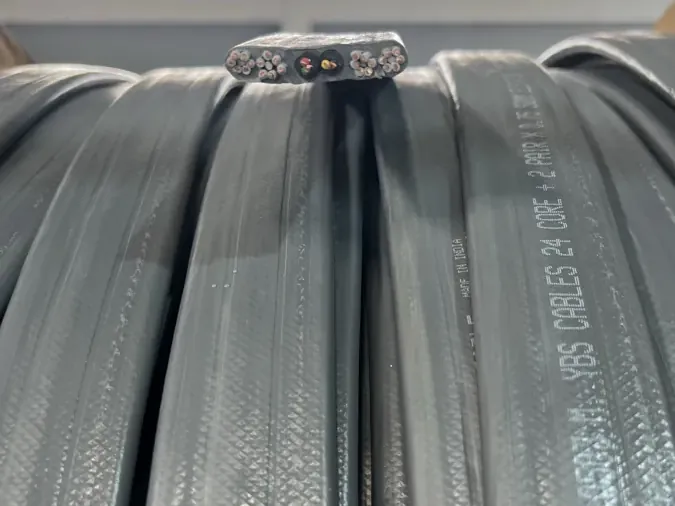

Drum of YBS flat elevator travelling cable with printed legend
Travelling cable on the drum

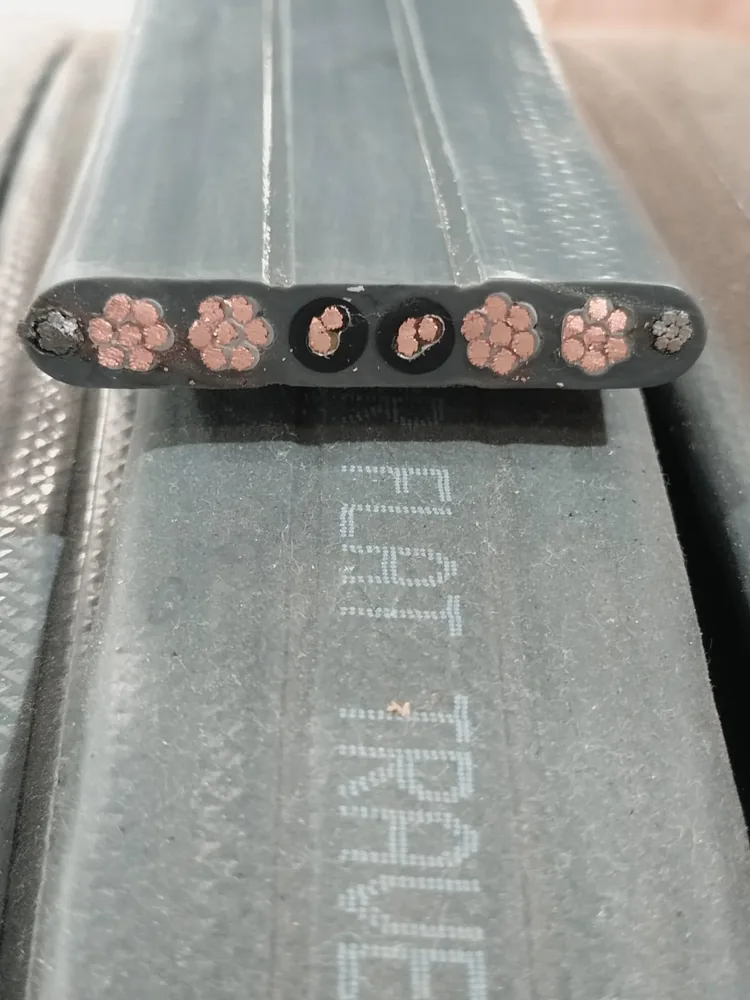

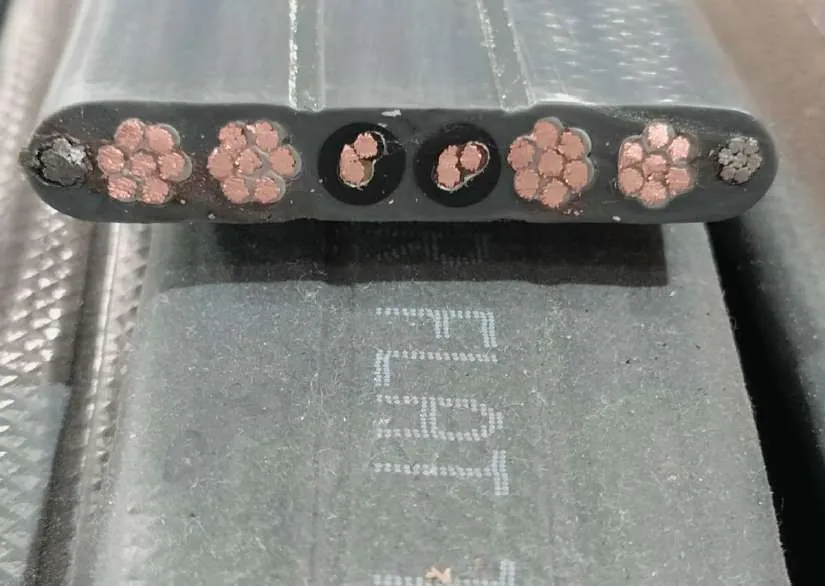

Cut end of a YBS 32 core flat travelling cable showing conductors and shielded pairs
32 core flat cable, cross-section

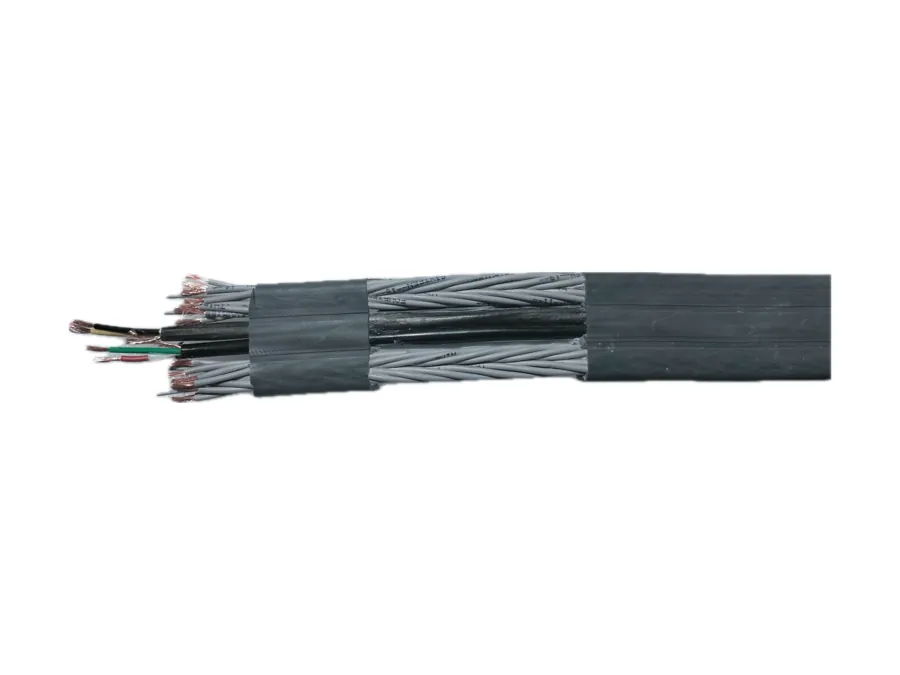

Stripped YBS combined travelling cable with power cores and pairs
Combined cable, cores exposed

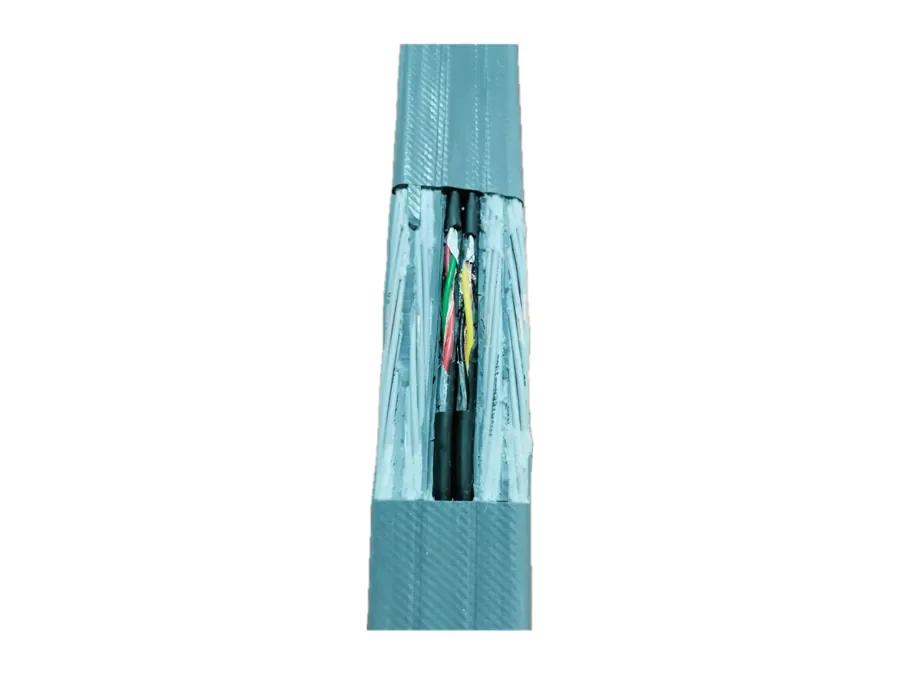

Opened YBS 28 core flat travelling cable showing shielded serial pairs
28 core + 2 shielded pairs
Configuration Description Quote
32 Core x 0.75 SQMM 28 Core x 0.75 SQMM + 2 Pair x 0.50 SQMM Shielded Serial Comm Combined Travelling Cable Get Quote
28 Core x 0.75 SQMM Popular 24 Core x 0.75 SQMM + 2 Pair x 0.50 SQMM Shielded Serial Comm Combined Travelling Cable Get Quote
24 Core x 0.75 SQMM 20 Core x 0.75 SQMM + 2 Pair x 0.50 SQMM Shielded Serial Comm Combined Travelling Cable Get Quote
16 Core x 0.75 SQMM 12 Core x 0.75 SQMM + 2 Pair x 0.50 Shielded Serial Comm Combined Travelling Cable Get Quote

Flat Travelling Cables

Flat elevator travelling cables in 0.50 and 0.75 SQMM, plus display cable coils for panels and indicators.

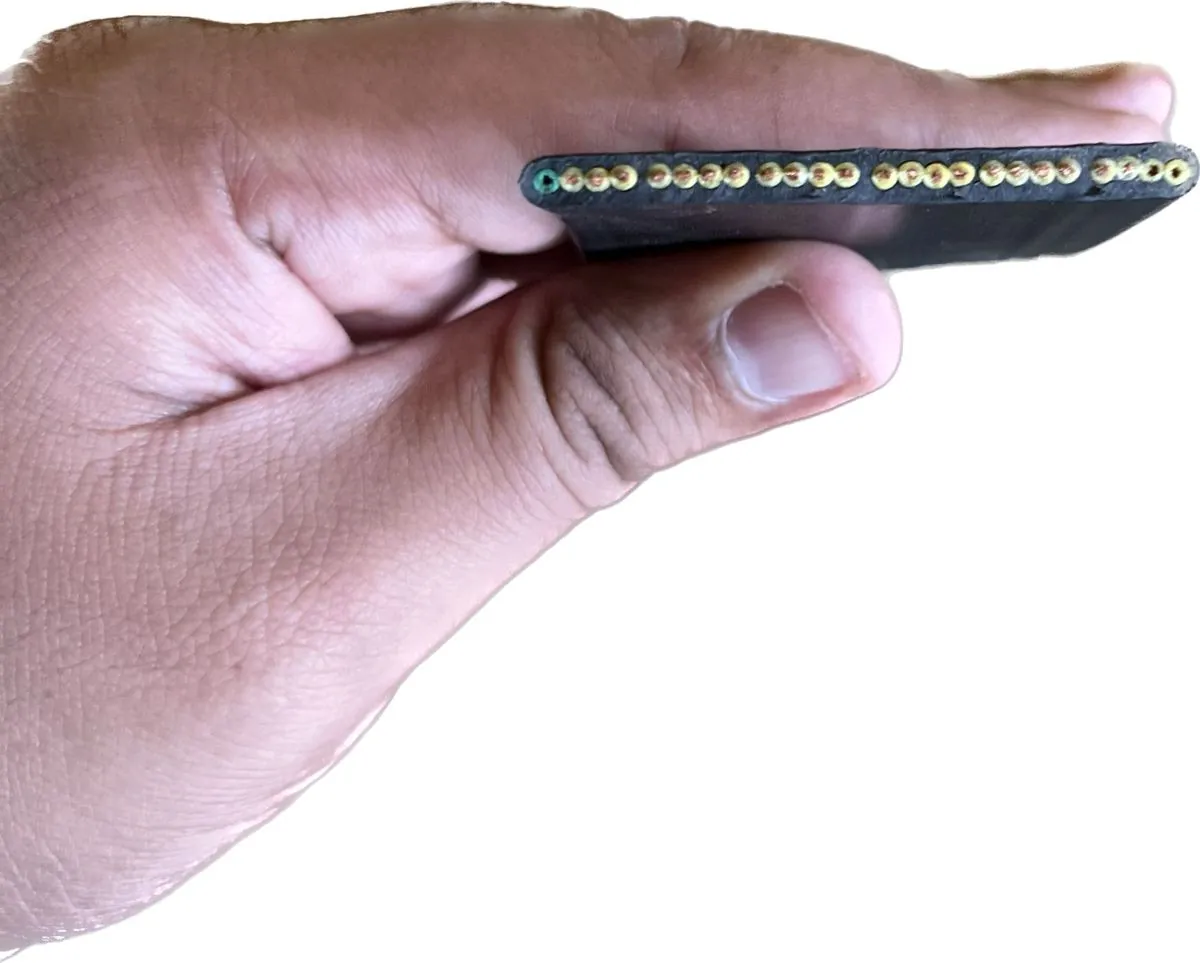

Hand holding a YBS 24 core flat elevator travelling cable
24 core flat cable, end view

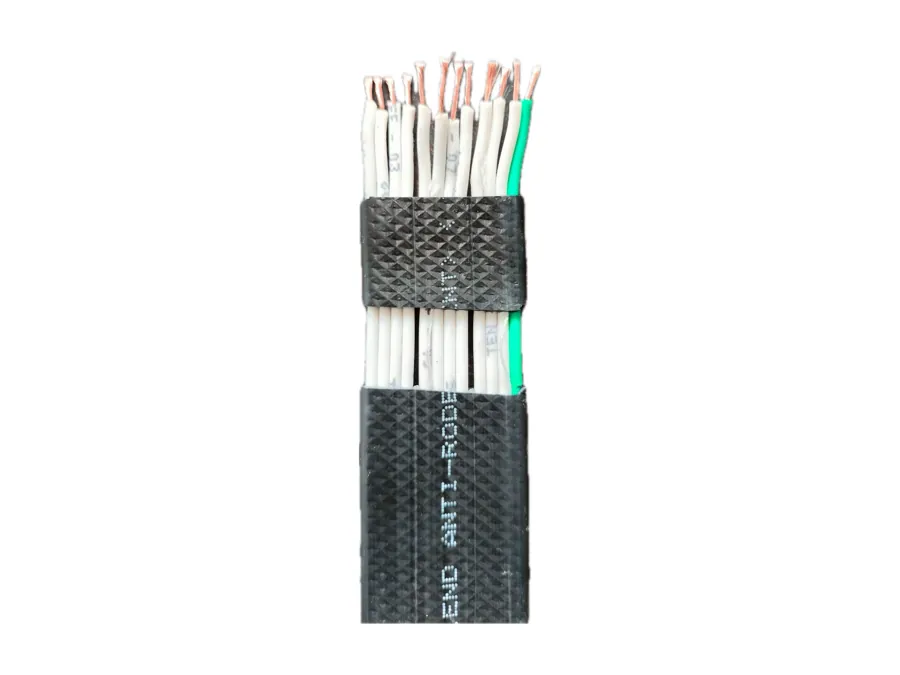

YBS 12 core x 0.50 SQMM flat elevator cable
12 core x 0.50 SQMM

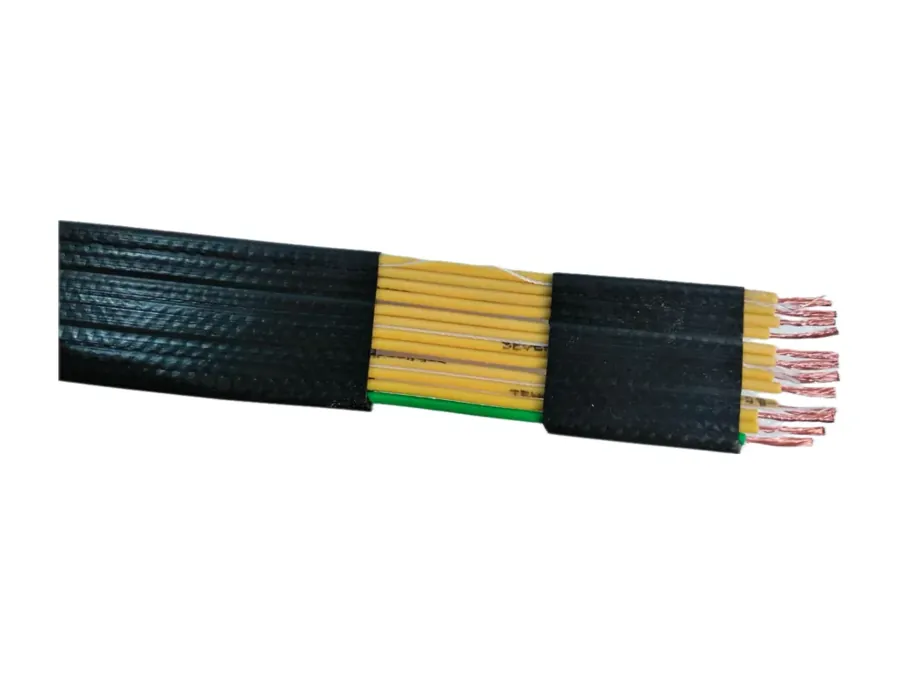

YBS 12 core flat cable with stripped yellow cores
12 core flat cable, cores exposed

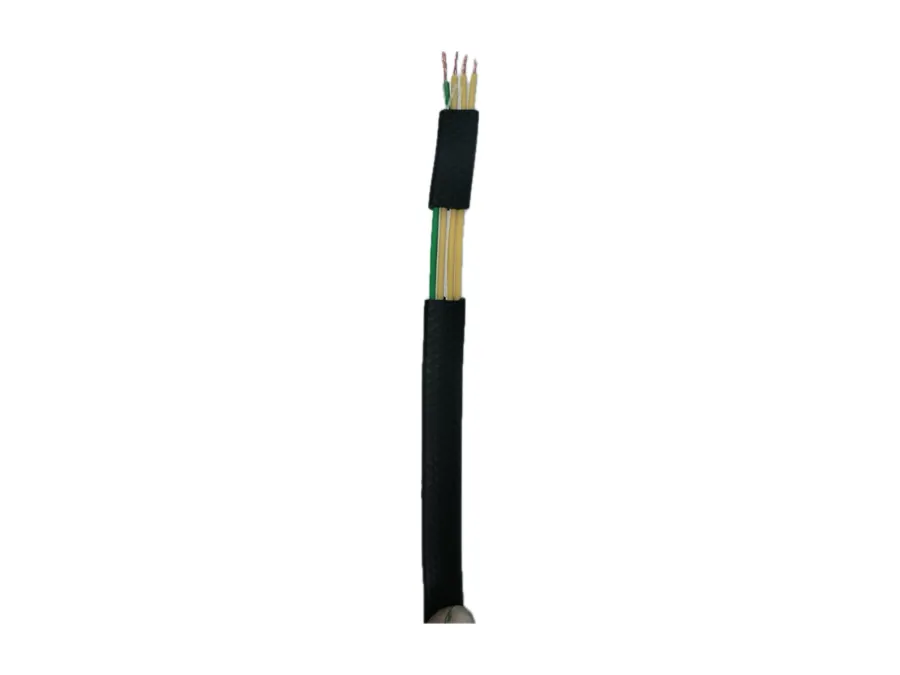

YBS 4 core x 0.50 SQMM flat elevator cable
4 core x 0.50 SQMM flat

0.50 SQMM Flat Cables

Configuration Packing Quote
4 Core x 0.50 SQMM 1000 Mtr Drum / 500 Mtr Box / 100 Mtr Coils Get Quote
12 Core x 0.50 SQMM 1000/500 Mtr Drum or 24/27/30/120 Mtr Coils Get Quote
16 Core x 0.50 SQMM 12 Core + 2 Pair Shielded Serial Comm Get Quote

0.75 SQMM Flat Cables

Configuration Packing Quote
4 Core x 0.75 SQMM 1000 Mtr Drum / 500 Mtr Box Get Quote
12 Core x 0.75 SQMM 1000/500 Mtr Drum (Ask for It) Get Quote
24 Core x 0.75 SQMM 1000/500 Mtr Drum (Ask for It) Get Quote

Display Cable Coils

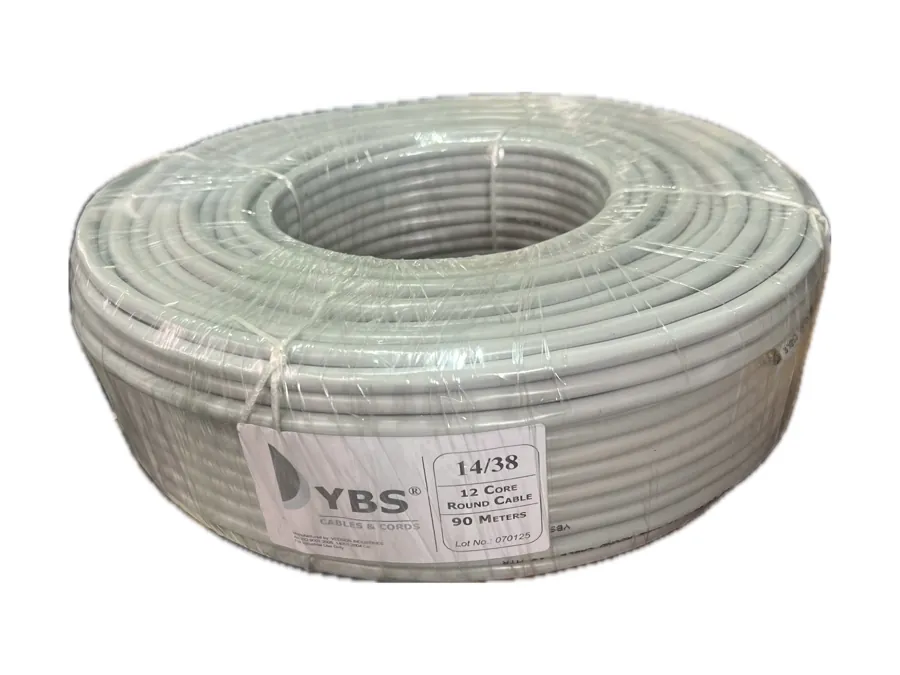

Bag of YBS 14/38T display cable coils
14/38T display cable

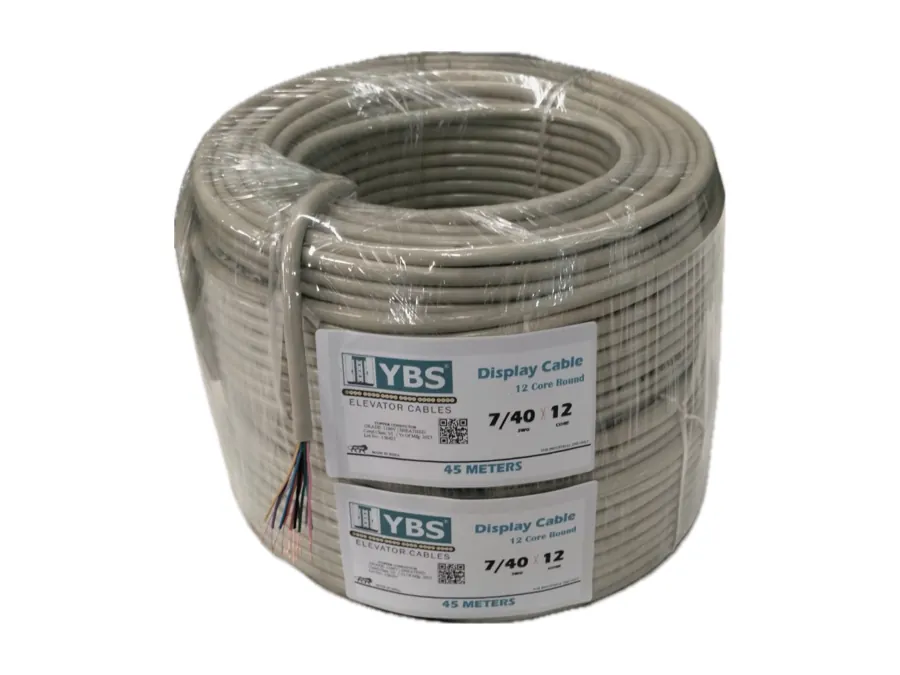

YBS 7/40 12 core display cable coils, 45 metres
7/40 display cable, 45 m

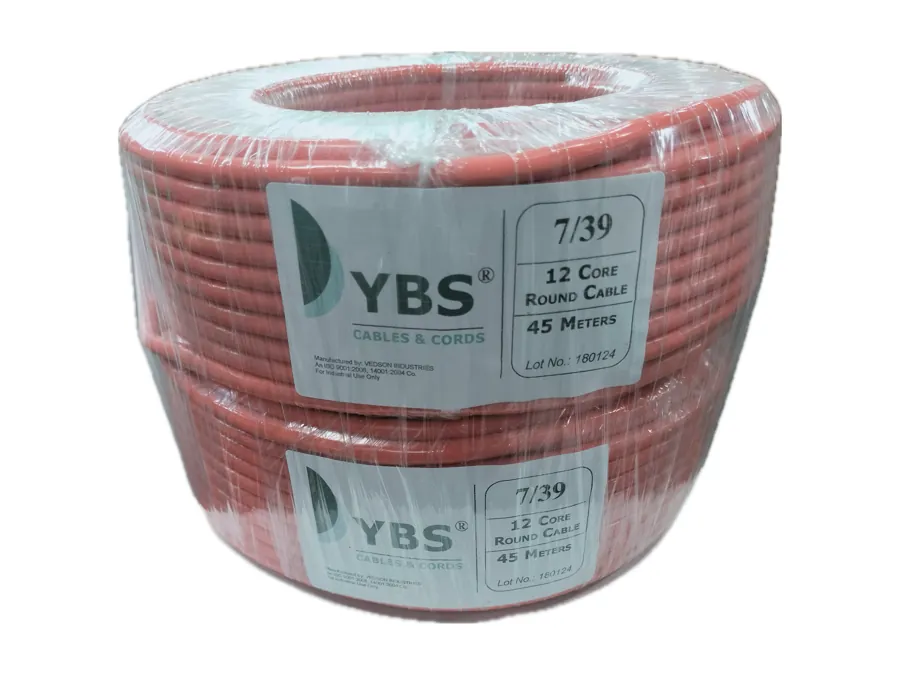

YBS 7/39 12 core display cable coils, 45 metres
7/39 display cable, 45 m
Specification Packing Quote
14/38T display cable 90 m coils, 5 coils per bag Get Quote
7/40 display cable 45 m coils, 8 coils per bag Get Quote
7/39 display cable 45 m coils, 16 coils per bag Get Quote
7/41 display cable 36 m coils, 20 coils per bag Get Quote

Communication Cables

Serial communication and camera cables for elevator systems.

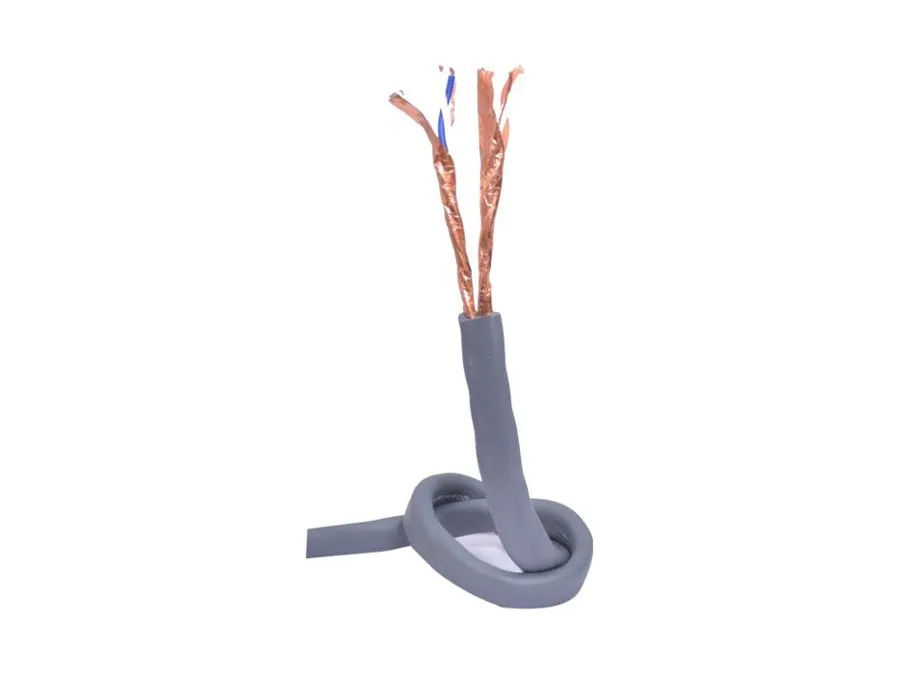

YBS 2 pair shielded serial communication cable with copper braid
2 pair x 0.50 SQMM serial cable

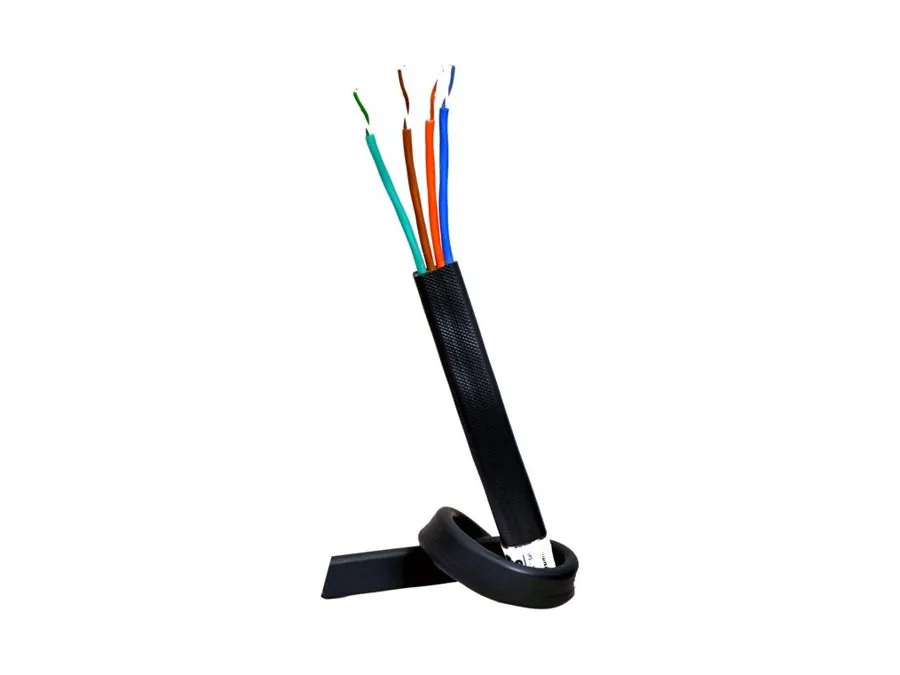

YBS CAT6 travelling cable for elevator CCTV
CAT6 elevator camera cable

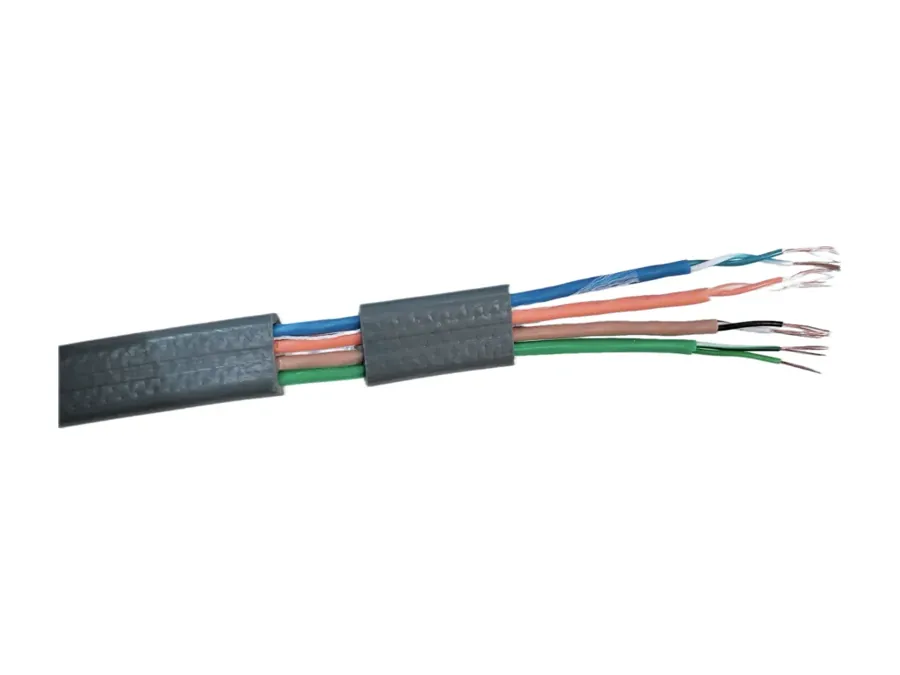

YBS CAT6 elevator travelling cable with twisted pairs exposed
CAT6 travelling cable, pairs exposed
Product Description Packing Quote
2 Pair x 0.50 SQMM Serial Comm Serial Communication Cable. Available in 0.75 SQMM on order. 1000 Mtr Drum / 500 Mtr Box Get Quote
CAT 6 Elevator Camera Cable High-flex CAT6 travelling cable for elevator CCTV 1000 Mtr Drum / 500 Mtr Box / 100 Mtr Coils Get Quote

Single Core Cables

Flexible single core cables for elevator wiring.

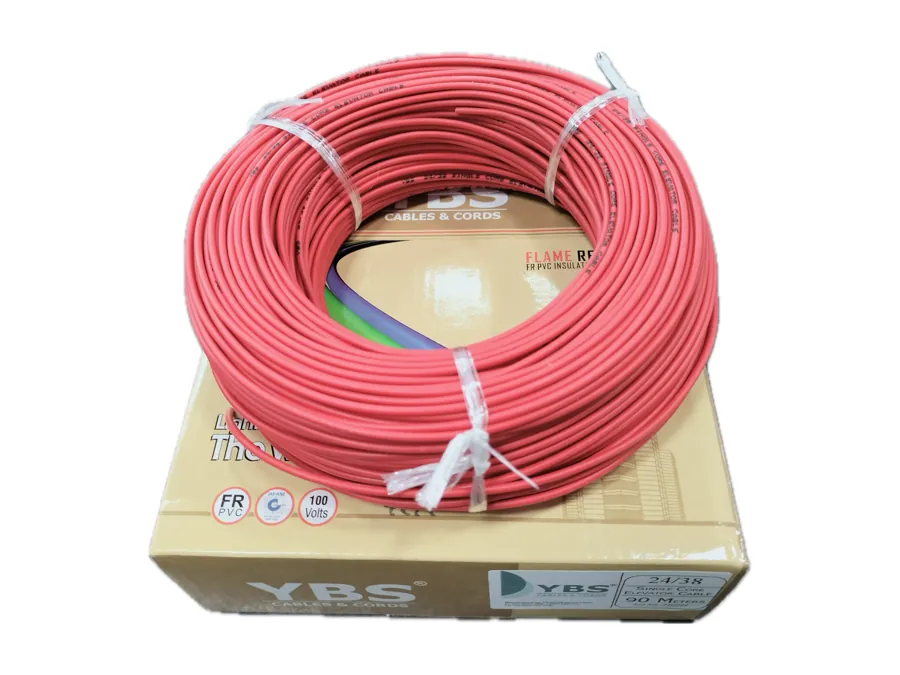

Red coil of YBS 24/38 single core wire with box
24/38 single core, boxed

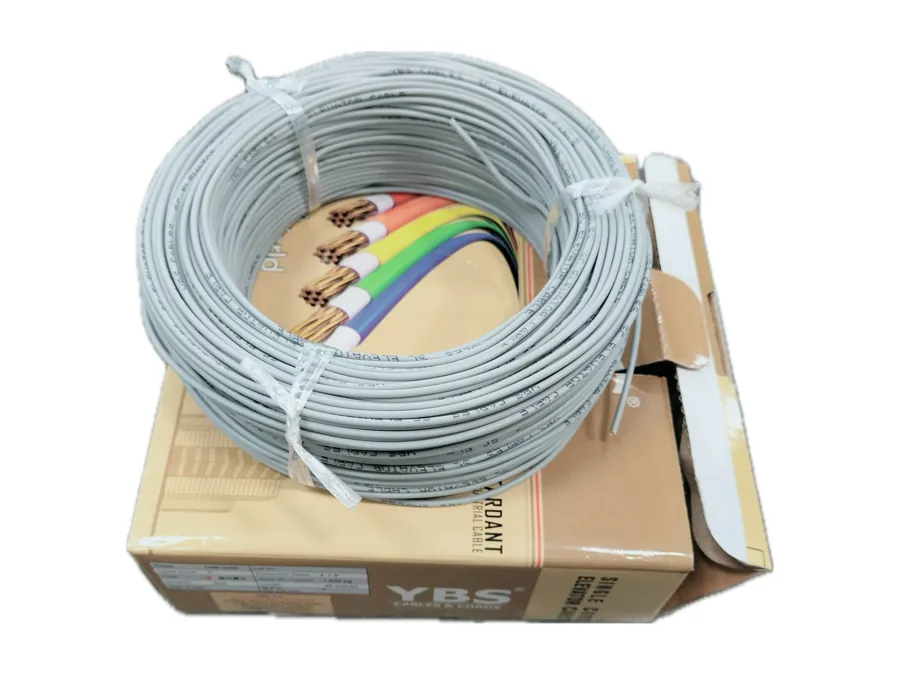

Grey coil of YBS 16/38 single core wire with box
16/38 single core, boxed

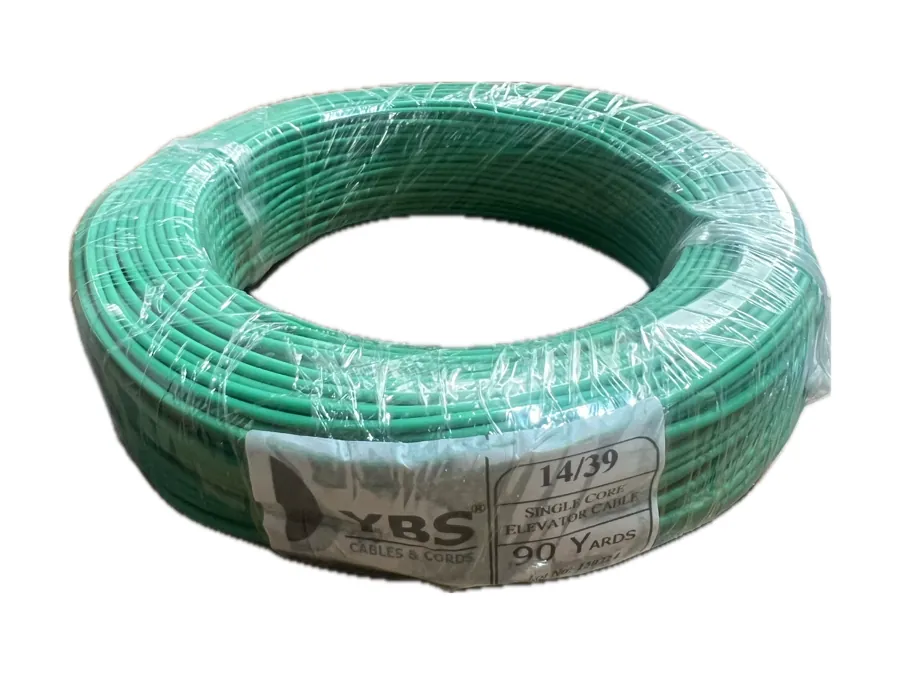

Green coil of YBS 14/39 single core wire
14/39 single core
Specification Packing Quote
24/38 Single Core 48 Coils/Box, 6 Colours/Box, 90 mtr coils Get Quote
16/38 Single Core 48 Coils/Box, 6 Colours/Box, 90 mtr coils Get Quote
14/39 Single Core 50 Coils/Bag, 5 Colours/Bag, 81 mtr coils Get Quote

Round/Shielded Cables

Round multi-core cables for elevator control systems.

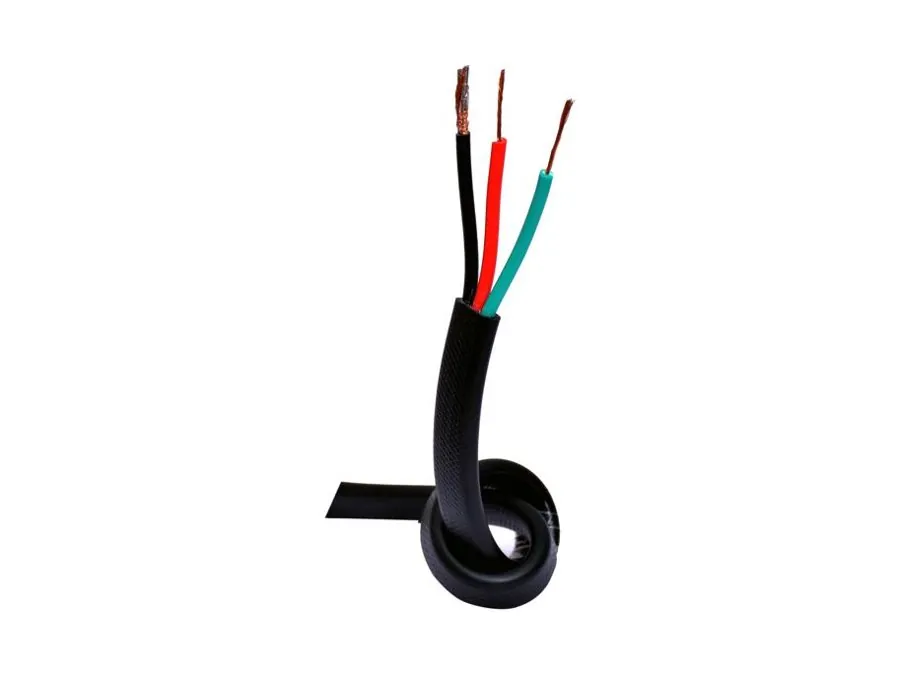

YBS round shielded elevator control cable
Round shielded control cable

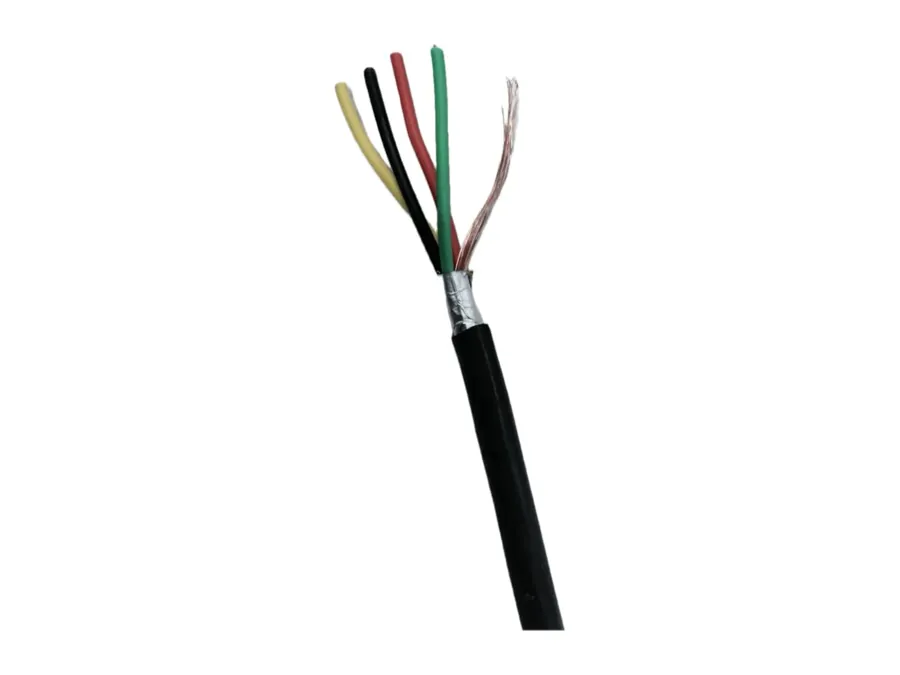

YBS 4 core shielded round cable with stripped cores
4 core shielded

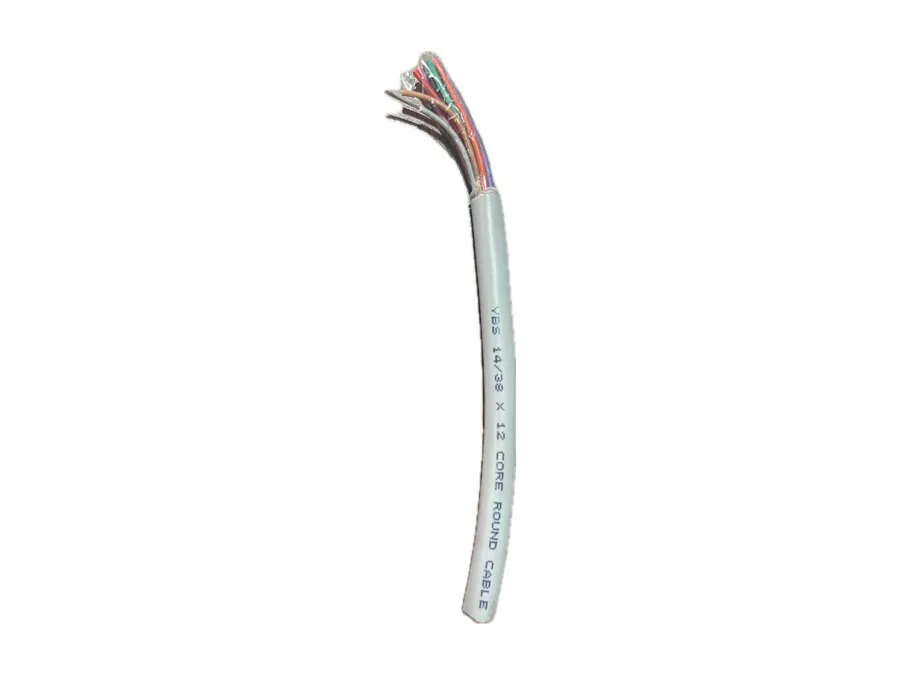

YBS grey 12 core round cable with stripped cores
12 core round

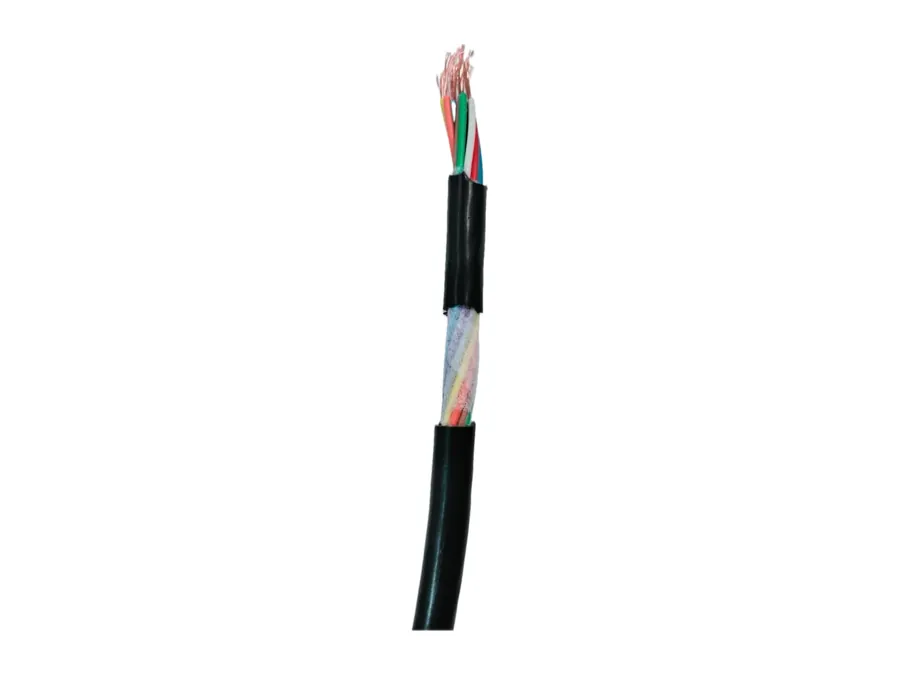

YBS black round elevator control cable
Round control cable

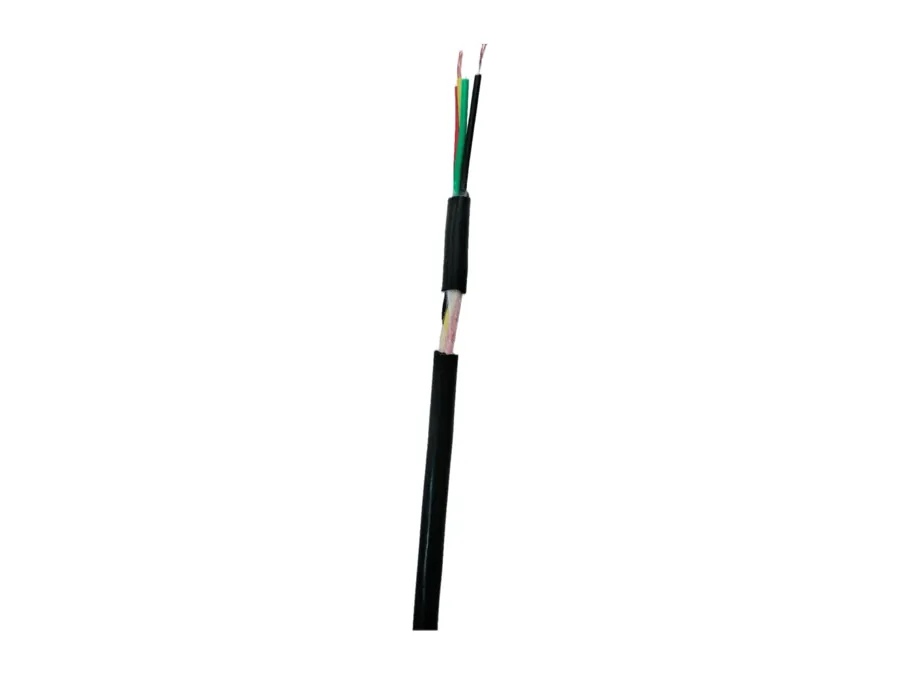

YBS black round 3 core elevator cable
Round control cable, 3 core
Configuration Packing Quote
16/38 x 2 Core Round 90 Mtr Coil Get Quote
16/38 x 3 Core Round 90 Mtr Coil Get Quote
16/38 x 4 Core Round 90 Mtr Coil Get Quote
16/38 x 4 Core Shielded 90 Mtr Coil Get Quote
16/38 x 6 Core Round 90 Mtr Coil Get Quote
16/38 x 12 Core Round 1000 Mtr Drum / 500 Mtr Box Get Quote

Motor Cables

High-current motor cables for elevator drive systems.

Product Description Packing Quote
21 AMP - 4 Core Motor Cable High-current elevator motor cable for drive systems 6/10/90 Mtr Coil or custom lengths Get Quote

Need Custom Elevator Cables?

Custom lengths, special configurations for your elevator project - we can help.
